Features

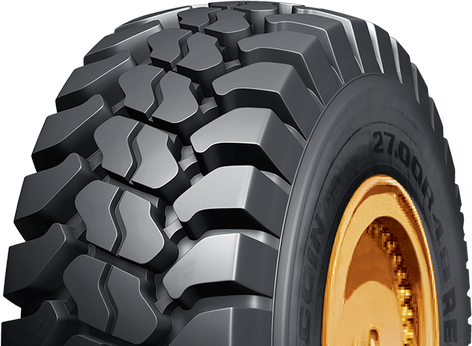

Deep tread groove provides good traction.

High strength special steel wire ensures tyre safety.

Using special curing technology in order to ensure reliable product quality.

Scope of application

Haulage (E4)

Features

Tire Size	Ply Rating	Speed (km/h)	Speed Index	Overall Diameter (mm)	Section Width (mm)	Tread Depth (mm)	Rim	Single Max Load	Pressure (kPa)	Load Index (Pa)
26.5R25	★★	50 10	B A2	1782	672	55	22.00/3.0	11500 18500	450 575	193 209
29.5R25	★★	50 10	B A2	1905	750	60	25.00/3.5	14000 22400	450 575	200 216
18.00R33	★★	50 10	B A2	1865	498	53	13.00/2.5	10900 18500	650 800	191 209
21.00R33	★★	50 10	B A2	1964	565	55	15.00/3.0	14000 23600	650 800	200 218
24.00R35	★★	50 10	B A2	2160	652	69	17.00/3.5	18500 30750	650 800	209 227
16.00R25	★★★	50 10	B A2	1526	436	43	11.25/2.0	8000 13200	800 900	180 198
14.00R25	★★★	50 10	B A2	1389	380	36	10.00/2.0	5800 10000	700 950	169 188

Tire Size

Ply Rating

Speed
(km/h)

Speed Index

Overall Diameter
(mm)

Section Width
(mm)

Tread Depth
(mm)

Rim

Single Max Load

Pressure
(kPa)

Load Index
(Pa)

26.5R25

★★

1782

672

22.00/3.0

11500

18500

450

575

193

209

29.5R25

★★

1905

750

25.00/3.5

14000

22400

450

575

200

216

18.00R33

★★

1865

498

13.00/2.5

10900

18500

650

800

191

209

21.00R33

★★

1964

565

15.00/3.0

14000

23600

650

800

200

218

24.00R35

★★

2160

652

17.00/3.5

18500

30750

650

800

209

227

16.00R25

★★★

1526

436

11.25/2.0

8000

13200

800

900

180

198

14.00R25

★★★

1389

380

10.00/2.0

5800

10000

700

950

169

188
