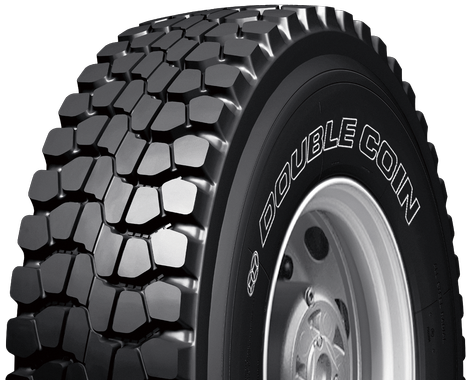

RLB766

CALL US NOW

+86 153 7688 1290

Call: +86 153 7688 1290

Strengthened carcass provides excellent load performance.

Super-strong bead design improves the load-bearing capacity of tires.

Deepen pattern design improves tire service life.

Special tread formulation for short and medium distance has excellent wear resistance.

New crown structure enhances the ability against puncture and reduces the crown failure.

Scope of application

Mixed – Drive Axle/Trailer Axle

Tire Size	Ply Rating	Load Index	Speed Symbol	Overall Diameter (mm)	Section Width (mm)	Tread Arc Width (mm)	Tread Depth (mm)	Rim	Single Max L/P(kg/kPa)	Dual Max L/P(kg/kPa)
11.00R20	18PR	152/149	J	1087	292	222	20.5	8.0	3550/930	3250/930
11.00R20	18PR★	152/149	J	1087	292	222	20.5	8.0	3550/930	3250/930
12.00R20	18PR	154/151	k	1125	310	238	20.5	8.5	3750/830	3450/830
12.00R20	18PR★	154/151	J	1125	310	238	20.5	8.5	3750/830	3450/830
12.00R20	20PR★	156/153	J	1125	310	238	20.5	8.5	4000/900	3650/900
