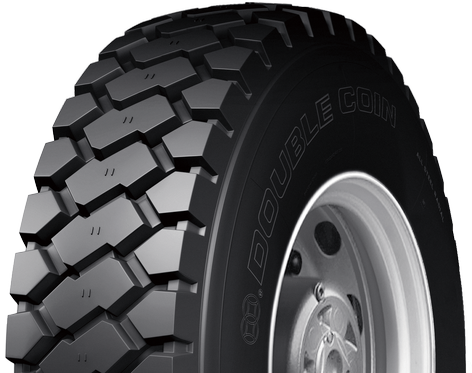

RLB800

Features

a drive-position truck tire built for severe service applications. This open shoulder, high traction commercial truck tire has deep biting edges for superior gripping power in rain, mud and snow.

Aggressive tread offers excellent traction for severe off-highway use.

Chip, cut and abrasion resistant compounds promote increase mileage and long service life.

Scope of application

Mine & Construction – All Position

Tire Size	Ply Rating	Load Index	Speed Symbol	Overall Diameter (mm)	Section Width (mm)	Tread Arc Width (mm)	Tread Depth (mm)	Rim	Single Max L/P(kg/kPa)	Dual Max L/P(kg/kPa)	Fuel Efficiency (EU)	Wet Grip (EU)	Noise Level (EU)
10.00R20	16PR	146/143	G	1065	275	210	23	7.5	3000/830	2725/830
10.00R20	18PR	149/146	G	1065	275	210	23	7.5	3250/930	3000/930
10.00R20	18PR★	149/146	G	1065	275	210	23	7.5	3250/930	3000/930
11.00R20	16PR	150/147	J	1100	292	229	23	8.0	3350/830	3075/830
11.00R20	16PR★	150/147	J	1100	292	229	23	8.0	3350/830	3075/830
11.00R20	18PR	152/149	J	1100	292	229	23	8.0	3550/930	3250/930
11.00R20	18PR★	152/149	J	1100	292	229	23	8.0	3550/930	3250/930
12.00R20	18PR	154/151	J	1137	314	240	23	8.5	3750/830	3450/830	D	C	2 (73dB)
12.00R20	18PR★	154/151	J	1137	314	240	23	8.5	3750/830	3450/830
12.00R20	20PR	156/153	J	1137	314	240	23	8.5	4000/900	3650/900
11R22.5	14PR	144/142	G	1065	276	220	23	8.25	2800/720	2650/720
11R22.5	16PR	148/145	G	1065	276	220	23	8.25	3150/850	2900/850	E	C	2 (73dB)
12R22.5	16PR	150/147	K	1107	301	237	26	9.00	3350/830	3075/830
12R22.5	18PR	152/149	K	1107	301	237	26	9.00	3550/930	3250/930
11R24.5	14PR	146/143	G	1108	276	214	23	8.25	3000/720	2725/720
11R24.5	16PR	149/146	G	1108	276	214	23	8.25	3250/830	3000/830
