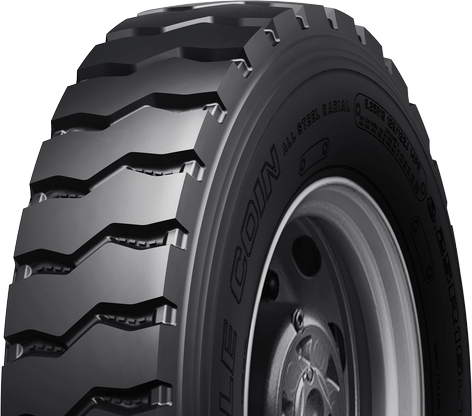

RLB969

CALL US NOW

+86 153 7688 1290

Call: +86 153 7688 1290

Large horizontal pattern design provides excellent grip and traction.

Dedicated formula system against gnawing and puncture.

Special bead reinforcement structure is designed against bead cracking, improves the bearing capacity.

Low heat generation base compound formula and unique tread design can effectively reduce

heat generation and improve tire durability.

Scope of application

Mine & Construction – All Position

Tire Size	Ply Rating	Load Index	Speed Symbol	Overall Diameter (mm)	Section Width (mm)	Tread Arc Width (mm)	Tread Depth (mm)	Rim	Single Max L/P(kg/kPa)	Dual Max L/P(kg/kPa)
8.25R20	14PR	136/134	J	980	234	170	19	6.5	2240/830	2120/830
8.25R20	16PR	139/137	J	980	234	170	19	6.5	2430/930	2300/930
7.00R16LT	12PR	115/110	J	780	200	154	17	5.50F	1215/670	1060/670
7.00R16LT	14PR	118/114	J	780	200	154	17	5.50F	1320/770	1180/770
8.25R16LT	14PR	126/122	J	870	232	170	17	6.50H	1700/670	1500/670
8.25R16LT	16PR	128/124	J	870	232	170	17	6.50H	1800/770	1600/770
8.25R16LT	18PR	132/128	J	870	232	170	17	6.50H	2000/870	1800/870
