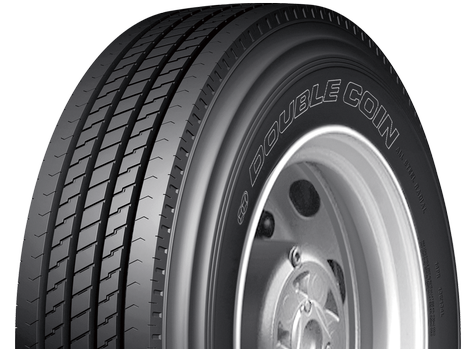

RR208

Features

Using the double tread rubber, the upper rubber enhances the abrasion resistant performance. The lower rubber reduces the tyre rolling heating and enhances the mileage.

The best design of pattern shape improves the performance of partial abrasion resistance.

The unique design of middle pattern block effectively reduces the irregular abrasion.

The optimized design of pattern balances the traction and stability of tyres, having excellent grip on both dry and wet roads.

Scope of application

Long Haul – Steer Axle/Trailer Axle

Tire Size	Ply Rating	Load Index	Speed Symbol	Overall Diameter (mm)	Section Width (mm)	Tread Arc Width (mm)	Tread Depth (mm)	Rim	Single Max L/P(kg/kPa)	Dual Max L/P(kg/kPa)	Fuel Efficiency (EU)	Wet Grip (EU)	Noise Level (EU)
10R22.5	14PR	141/139	L	1020	254	188	14.5	7.50	2575/790	2430/790
10R22.5	14PR	141/139	M	1020	254	188	14.5	7.50	2575/790	2430/790
10R22.5	16PR	144/142	L	1020	254	188	14.5	7.50	2800/900	2650/900
10R22.5	16PR	144/142	M	1020	254	188	14.5	7.50	2800/900	2650/900
11R22.5	14PR	144/142	M	1051	282	202	15.5	8.25	2800/720	2650/720
11R22.5	16PR	148/145	M	1051	282	202	15.5	8.25	3150/850	2900/850
12R22.5	16PR	150/147	L	1082	297	228	15.5	9.00	3350/830	3075/830
12R22.5	18PR	152/149	L	1082	297	228	15.5	9.00	3550/930	3250/930
12R22.5	18PR	152/149	M	1082	297	228	15.5	9.00	3550/930	3250/930
295/80R22.5	16PR	150/147	M	1053	304	234	15.5	9.00	3350/830	3075/830
295/80R22.5	18PR	152/149	M	1053	304	234	15.5	9.00	3550/900	3250/900	C	B	2 (72dB)
295/80R22.5	20PR	154/149	M	1053	304	234	15.5	9.00	3750/900	3250/900	C	B	2 (72dB)
315/80R22.5	18PR	156/152	L	1082	316	260	15.5	9.00	4000/830	3550/830	C	B	2 (72dB)
8R22.5	12PR	128/126	L	942	209	148	14.5	6.00	1800/760	1700/760
8R22.5	14PR	130/128	L	942	209	148	14.5	6.00	1900/830	1800/830
8R22.5	14PR	130/128	M	942	209	148	14.5	6.00	1900/830	1800/830
9R22.5	14PR	136/134	L	974	230	180	14.5	6.75	2240/830	2120/830
9R22.5	14PR	136/134	M	974	230	180	14.5	6.75	2240/830	2120/830
