Features

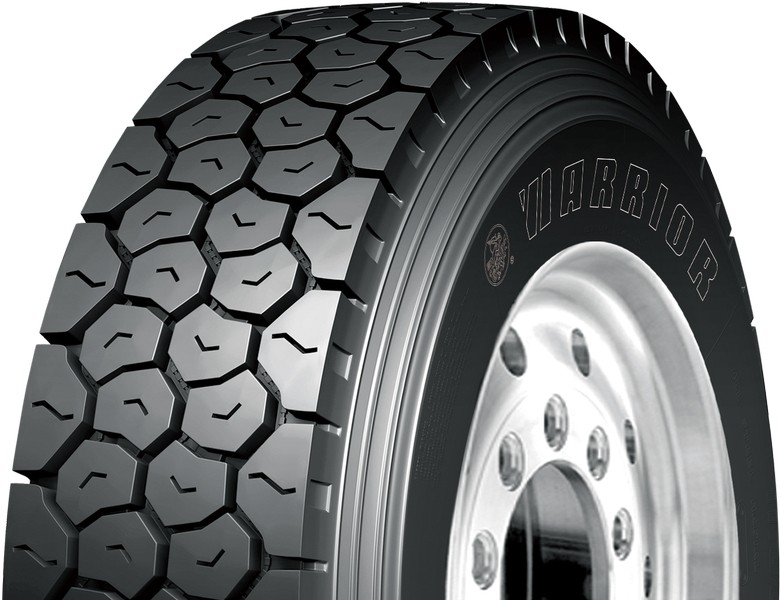

Cross groove design helps to clear water and mud away and offers excellent traction with outstanding handling characteristics, suitable for all complex road conditions.

Special tread compound and stone-removal construction promotes resistance against cuts and punctures.

Open shoulder and radiating grooves improve heat radiating.

Special belt package construction enhances rigidity in tread and shoulder; superior bead design effectively reduces carcass deformation and comprehensively enhances load-carrying capacity.

Reinforced carcass and bead improve the load-carrying capacity.

Excellent traction

Outstanding resistance to cuts and punctures

Great heat-radiating performance

Superior load-carrying capacity

Scope of application

Mixed – Drive Axle/Trailer Axle

Features

Tire Size	Ply Rating	Load Index	Speed Symbol	Overall Diameter (mm)	Section Width (mm)	Tread Arc Width (mm)	Tread Depth (mm)	Rim	Single Max L/P(kg/kPa)	Dual Max L/P(kg/kPa)
10.00R20	18PR★	149/146	J	1062	278	212	19	7.5	3250/930	3000/930
11.00R20	18PR★	152/149	J	1092	292	226	19	8.0	3550/930	3250/930
12.00R20	18PR★	154/151	J	1130	310	252	19	8.5	3750/830	3450/830
9.00R20	16PR	144/142	J	1026	256	189	17	7.0	2800/900	2650/900
8.25R16LT	16PR	128/124	J	868	232	178	16	6.50H	1800/770	1600/770
