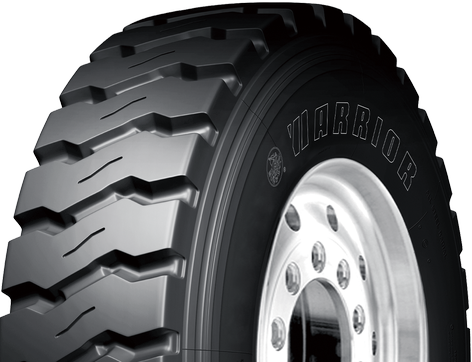

Reinforced carcass design improves tyre load-carrying capacity.

Unique bead design effectively improves bead resistance against burst and crack.

Robust block pattern improves more toughness.

Special tread compound promotes tyre resistance against gnaw and puncture.

Enhanced side design protects sidewall from impact of external force and scratching.

Full-depth transverse tread provides strong traction and grip and effectively extends service life.

Superior load-carrying capacity

Outstanding resistance against gnaw and puncture

Longer service life

Scope of application

Mine & Construction – All Position

Tire Size	Ply Rating	Load Index	Speed Symbol	Overall Diameter (mm)	Section Width (mm)	Tread Arc Width (mm)	Tread Depth (mm)	Rim	Single Max L/P(kg/kPa)	Dual Max L/P(kg/kPa)
10.00R20	18PR★	149/146	D	1067	276	202	22	7.5	3250/930	3000/930
11.00R20	18PR★	152/149	D	1098	292	226	23	8.0	3550/930	3250/930
12.00R20	18PR★	154/151	D	1137	310	248	23	8.5	3750/830	3450/830
12.00R20	20PR★	156/153	D	1137	310	248	23	8.5	4000/900	3650/900
