Features

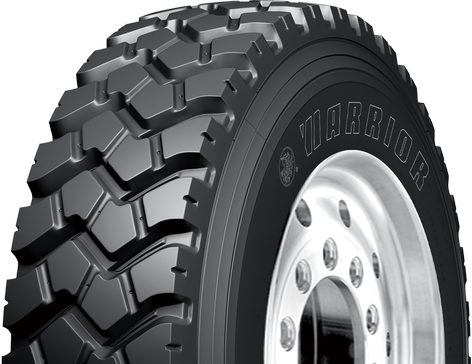

Like OTR tyre, shoulder design enhances against scratching and improves service life; special stone-removal structure effectively protects tread base and extends tyre life.

Open shoulder and radiating tread design provides better heat dissipation performance.

Special belt package construction enhances rigidity in tread and shoulder; superior bead design effectively reduces carcass deformation under heavy load and comprehensively enhances load-carrying capacity.

Special formula promotes cut resistance.

Outstanding resistance to cuts and punctures

Superior load-carrying capacity

Scope of application

Mixed – Drive Axle/Trailer Axle

Features

Tire Size	Ply Rating	Load Index	Speed Symbol	Overall Diameter (mm)	Section Width (mm)	Tread Arc Width (mm)	Tread Depth (mm)	Rim	Single Max L/P(kg/kPa)	Dual Max L/P(kg/kPa)
11.00R20	18PR★	152/149	D	1104	292	222	24.5	8.0	3550/930	3250/930
12.00R20	18PR★	154/151	D	1141	310	240	24.5	8.5	3750/830	3450/830
12.00R20	20PR★	156/153	D	1141	310	240	24.5	8.5	4000/900	3650/900
