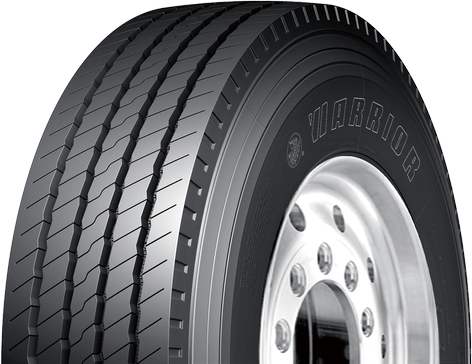

WS200

CALL US NOW

+86 153 7688 1290

Call: +86 153 7688 1290

Special tread compound and optimized ratio of groove and block design promotes outstanding abrasion-resistance

Wider tread improves tyre pressure.

New pattern design with strip curved grooves meet steering needs; tiny transverse steel sheets improve adaptability in different wheel positions.

Special stone-removal construction effectively protects tread base to increase service life.

Premium abrasion-resistance

Great handling performance

Excellent wheel adaptability

Outstanding tread protection performance

Scope of application

Long Haul – Steer Axle/Trailer Axle

Tire Size	Ply Rating	Load Index	Speed Symbol	Overall Diameter (mm)	Section Width (mm)	Tread Arc Width (mm)	Tread Depth (mm)	Rim	Single Max L/P(kg/kPa)	Dual Max L/P(kg/kPa)
10.00R20	16PR	146/143	L	1058	272	204	16.5	7.5	3000/830	2725/830
10.00R20	18PR	149/146	J	1058	272	204	16.5	7.5	3250/930	3000/930
11.00R20	18PR	152/149	L	1088	292	218	16.5	8.0	3550/930	3250/930
9.00R20	16PR	144/142	J	1026	256	189	16.5	7.0	2800/900	2650/900
12R22.5	18PR	152/149	M	1080	304	244	16.5	9.00	3550/930	3250/930
