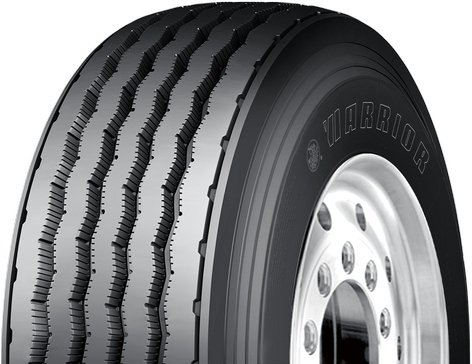

Special tread compound with ratio of groove and block design render outstanding wear resistance.

Circumferential tiny and deep grooves on the shoulder reduce irregular wear at high speed.

Special shoulder design and low heat formula improves tyre heat dissipation.

Outstanding abrasion-resistance

Superior high-speed adaptability

Great heat dissipation performance

Scope of application

Regional – Steer Axle/Trailer Axle

Tire Size	Ply Rating	Load Index	Speed Symbol	Overall Diameter (mm)	Section Width (mm)	Tread Arc Width (mm)	Tread Depth (mm)	Rim	Single Max L/P(kg/kPa)	Dual Max L/P(kg/kPa)
12R22.5	12PR**	143/141	M	1086	300	214	15.5	9.00	2725/620	2575/620
12R22.5	16PR	150/147	M	1086	300	214	15.5	9.00	3350/830	3075/830
12R22.5	18PR	152/149	M	1086	300	214	15.5	9.00	3550/930	3250/930
